School PA System Malaysia: Amplifier, Speakers & Zone Guide
School PA System Buying Guide
School PA System Malaysia: Amplifier, Speakers & Zone Guide

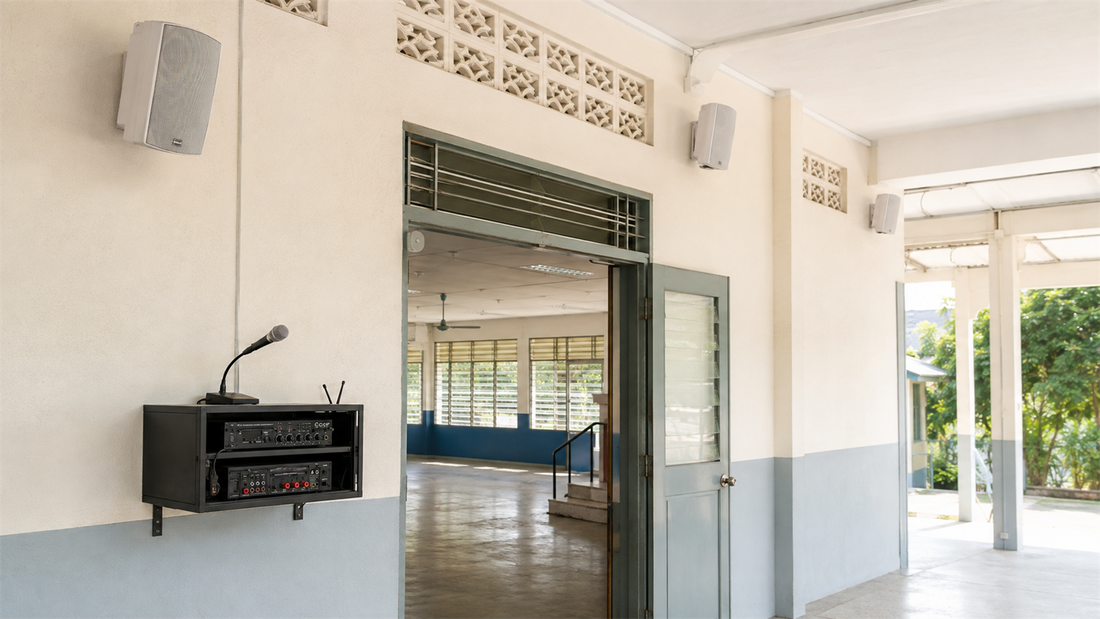

A school PA system should be planned by broadcast areas first: office, classrooms, corridors, assembly hall and outdoor edges. After that, choose the PA amplifier, wall speakers, microphone inputs, zone control and 70V/100V matching.
Quick Answer
For most school paging needs, start with an installed school PA system using a PA amplifier and multiple wall-mounted speakers. If you are still learning the basics, read Apa Itu Sistem Siar Raya? first.
Start With School Areas, Not Wattage
Do not choose a PA amplifier only by the biggest wattage number. A school should first mark where announcements must be heard and which areas need separate volume control.
Common areas include the admin office, classrooms, corridors, canteen, assembly hall and security post. Browse CCF PA systems after the speaker points are roughly planned.
Classrooms, Corridors And Hall Need Different Thinking
Classrooms
Check whether the speaker is for announcements only or also for daily audio support.
Corridors
Long corridors may need multiple speaker points instead of one loud speaker at the end.
Assembly Hall
Large halls should be planned separately from classroom paging and office announcements.
For a compact wall speaker package, compare the CCF 2/3 Zone PA System Set with 4 inch Wall Speakers. For a larger wall speaker direction, review the CCF 6.5 inch 70V/100V PA System 4 Speakers.
Check Office Microphone And Audio Source
The school office is often the control point for announcements. Confirm whether the system needs a desktop microphone, handheld microphone, music source, bell source or another audio input before choosing the amplifier.
For amplifier feature comparison, use the PA Amplifier Malaysia guide as the deeper reference.
When 70V/100V PA Makes Sense
70V/100V PA systems are commonly used when several speakers need to be installed across a building or campus area. This can suit schools because classroom blocks and corridors may need multiple speaker points.
The final matching still depends on the amplifier output, speaker tap, total speaker quantity and cable route. Read the 70V/100V PA System guide before mixing equipment.
Matching Reminder
Do not mix ordinary home speakers with a school PA amplifier without checking output type, impedance or 70V/100V speaker tap. Send equipment photos to CCF Audio if the school is replacing an old system.
Choose Zones By Control Needs
A zone is an area with separate volume or broadcast control. It is not simply the number of speakers.
| School Situation | Possible Direction | Check First |
|---|---|---|
| Small office and several rooms | compare PA amplifiers and speaker systems as a starting reference | Speaker points, microphone need and total speaker load |
| Classroom block plus corridor | CCF 3 Zone Bluetooth PA Amplifier 70V/100V RMS 100W or compare PA amplifiers and speaker systems | Whether classroom, corridor and office need separate control |
| Wider school area | CCF 5 Zone Bluetooth PA Amplifier 70V/100V RMS 350W as a comparison option | Zone plan, wiring route and speaker quantity |
What To Send Before Ordering
- School area photos
- Simple floor plan or classroom block layout
- Speaker points needed for each area
- Whether wall speakers are preferred
- Office microphone position
- Need for bell, music or other audio source
- Areas that need separate volume control
- Existing amplifier and speaker photos, if replacing old equipment
- Voltage and plug requirements
- Delivery location in Malaysia
Recommended CCF Starting Points
School & Factory PA Systems
Start with the School & Factory PA System collection for paging and broadcast planning.
PA Amplifier And Speaker Options
Use the PA amplifier and speaker collection when comparing amplifiers, zones and speaker sets.
Wall Speaker Sets
Compare 4 inch and 6.5 inch wall speaker packages after confirming classroom and corridor speaker positions.
Related Planning Guides
For similar planning logic, read the Shop PA System Malaysia guide and the Masjid & Surau PA System guide.
FAQ
Can one PA amplifier cover a whole school?
It depends on speaker quantity, zone layout, speaker tap, cable route and amplifier output. Do not decide by wattage alone.
Should classrooms and corridors be separate zones?
Separate zones are useful when the office needs different volume or broadcast control for classrooms, corridors and halls.
Are wall speakers suitable for school announcements?
Wall-mounted PA speakers are commonly used for installed announcement systems, but the size and quantity should match the room and amplifier plan.
What should a school confirm before buying?
Confirm the areas, speaker quantity, microphone needs, existing equipment, zone control and delivery location before choosing the final PA system.
Next Step
Browse School & Factory PA Systems or send CCF Audio your school layout, speaker quantity and microphone needs for a more suitable PA system direction.
