PA System Masjid & Surau Malaysia: Amplifier & Speaker Guide
Masjid & Surau PA System Buying Guide
PA System Masjid & Surau Malaysia: Amplifier & Speaker Guide
For a masjid or surau PA system in Malaysia, start with the room areas, microphone use, speaker positions, amplifier zones and 70V/100V matching. The safest buying direction is to plan the installation points first, then choose the amplifier and speaker set.
Quick Answer

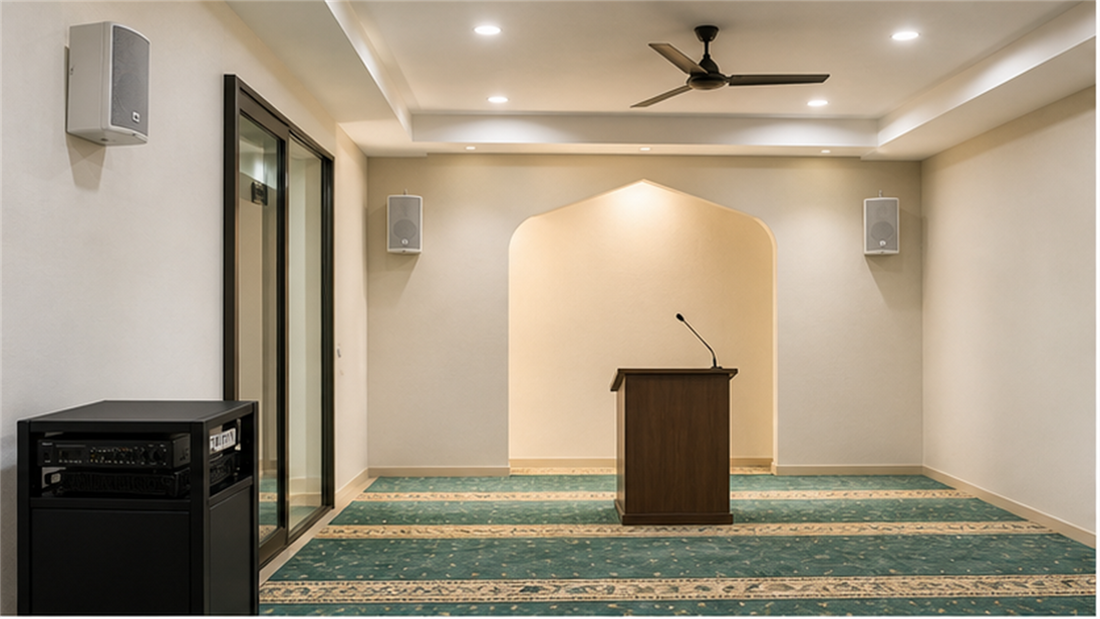

A masjid or surau usually needs clear speech across the main hall and entrance areas, so a PA system with wall-mounted speakers is often a more practical direction than one large home speaker. If you are still choosing the amplifier size and zone count, read the PA Amplifier Malaysia guide before ordering.
Start With The Prayer Hall And Entrance Areas
Before choosing a PA amplifier, mark where people need to hear speech clearly. The main hall, back area, entrance, corridor and office corner may not need the same volume or the same speaker position.
For a simple installed direction, compare the PA amplifier and speaker collection and the CCF 2/3 Zone PA System Set with 4 inch Wall Speakers.
Do You Need Separate Zones?
A zone means one area can be controlled separately from another area. It is useful when the main hall, outside entrance or office area should not always play at the same volume.
Small Surau
Start by checking whether one main area plus a simple speaker set is enough.
Main Hall + Entrance
Consider separate volume control if the entrance or side area needs different sound level.
Larger Masjid Areas
Plan the number of speaker points and zones before selecting a higher zone amplifier.
For smaller systems, the compare PA amplifiers and speaker systems can be a starting reference. For more zone control, compare the CCF 3 Zone Bluetooth PA Amplifier 70V/100V RMS 100W and the CCF 5 Zone Bluetooth PA Amplifier 70V/100V RMS 350W.
Check Microphones And Audio Sources
Speech use is usually the first priority for a masjid or surau system. Confirm how many microphones are needed, where the microphone will be used, and whether the system also needs phone, USB, SD card, radio or other audio input.
Do this before choosing the amplifier because inputs and daily use matter as much as speaker quantity. For a broader commercial planning comparison, the Shop PA System Malaysia guide explains the same idea for retail spaces.
4 Inch Or 6.5 Inch Wall Speakers
Wall speaker size should match the room, listening distance, mounting position and amplifier direction. Do not choose only by price or by one claimed coverage number.
For speaker size comparison, use the 4 inch vs 6.5 inch wall speaker guide. If the hall needs a 6.5 inch wall speaker direction, compare the CCF 6.5 inch 70V/100V PA System 4 Speakers.
Confirm 70V/100V Matching Before Buying
Important Matching Check
Do not mix a PA amplifier, wall speakers and ordinary home audio wiring without checking the output type, speaker tap, speaker quantity and installation method. If you are unsure, send CCF Audio the room areas, speaker quantity and existing equipment photos before ordering.
70V/100V PA systems are commonly used when multiple speakers need to be installed across a building. The final matching still depends on the amplifier output, speaker taps, wiring route and quantity of speakers.
What To Send Before Ordering
- Main hall size and shape
- Entrance, corridor or outdoor edge areas
- Current speaker points, if any
- Preferred wall speaker quantity
- Need for separate zone volume control
- Microphone quantity and position
- Music or announcement source
- Existing amplifier photos, if replacing old equipment
- Voltage and plug requirements
- Delivery location in Malaysia
Recommended CCF Starting Points
For Smaller Surau Setups
Use the 4 inch wall speaker PA system set when the buying direction is a compact installed system with wall-mounted speakers.
For Larger Hall Planning
Use the 6.5 inch 70V/100V PA system set when the room and speaker position call for the larger wall speaker direction.
For Separate Area Control
Compare 3 zone and 5 zone PA amplifier options after confirming the areas to control.
For Similar Public Spaces
If your surau also works like a cafe, office or shop space, compare planning ideas from the Cafe Sound System Malaysia guide.
FAQ
Can one PA amplifier run multiple masjid or surau wall speakers?
It can in the right 70V/100V PA setup, but the speaker quantity, speaker tap, amplifier output and wiring route must be checked first.
Should a surau use wall speakers or karaoke speakers?
For installed speech, announcements and background audio, wall-mounted PA speakers are usually the cleaner direction. Karaoke speakers are planned differently.
How many zones does a masjid PA system need?
Count the areas that need separate volume control, not only the number of speakers. A main hall and entrance may need different control depending on use.
What should I send to CCF Audio before buying?
Send room photos, rough floor layout, speaker quantity, microphone needs, existing equipment photos and delivery location. This helps avoid wrong amplifier or speaker matching.
Next Step
Browse the CCF PA System collection or contact CCF Audio with your masjid or surau layout, speaker quantity and microphone needs for a more suitable buying direction.
