Factory PA System Malaysia: Paging, Speakers & Zone Guide
Factory PA System Buying Guide
Plan Around Noise, Speaker Points And Paging
A factory PA system should be planned by noise level, work areas, speaker positions and paging needs before choosing amplifier wattage. For workshops and warehouses, clear announcements usually depend on the whole layout, not only one bigger amplifier.
Quick Answer
Start with three decisions: which areas need announcements, how noisy they are during work, and which areas need separate control. Then compare speaker suitability, line voltage and total speaker load with the amplifier. Browse School & Factory PA Systems once those requirements are clear.

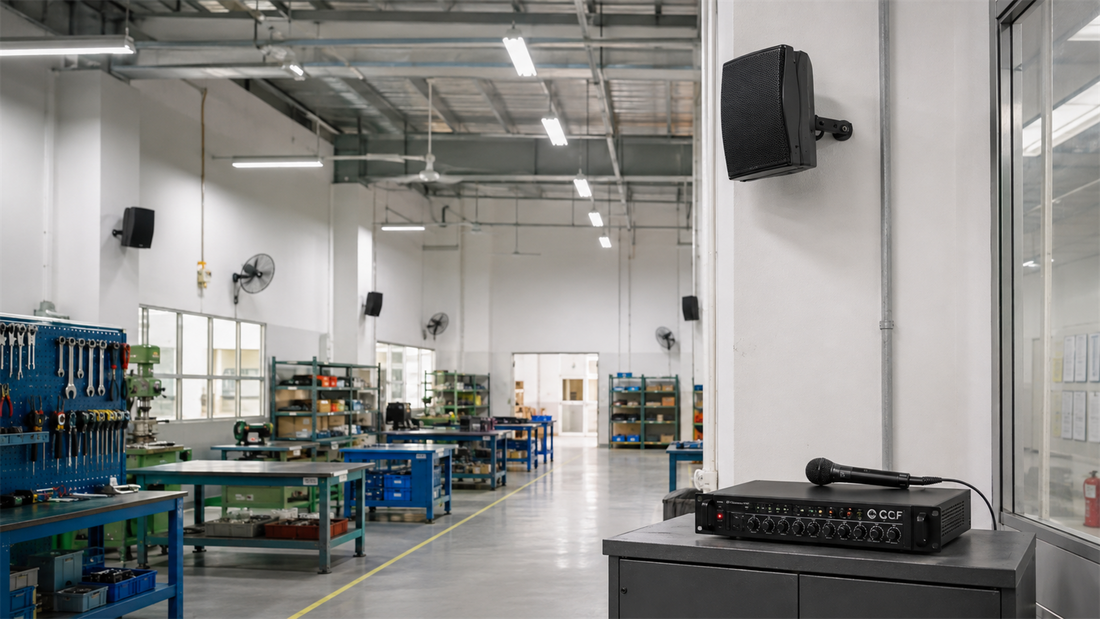

Wall-mounted speakers are an option for suitable indoor areas. Noisy machinery, high racks, dust or exposed loading bays need a site-specific speaker assessment before choosing a package.
Start With Noise And Work Areas
Do not choose a factory PA system only by the highest wattage number. A noisy production floor, packing area, warehouse rack zone and office area may need different speaker positions or separate volume control.
Mark the announcement points first, then compare CCF PA systems and amplifier options. This helps avoid buying a system that is loud near the control point but unclear in the real work area.
Factory, Warehouse And Workshop Need Different Thinking
Production Floor
Check machine noise, speaker mounting points and whether announcements must reach workers across long rows.
Warehouse Racks
Long aisles may need several wall speaker points instead of one speaker placed near the entrance.
Office And Counter
The office or supervisor counter usually needs the paging microphone and amplifier control position.
For suitable indoor areas, compare the 4-inch wall speaker PA set and 6.5-inch 70V/100V four-speaker set. Speaker size alone does not establish coverage or speech clarity on a production floor.
Check Paging Microphone And Audio Source
For routine staff paging, shift announcements or background audio in quieter areas, confirm the microphone type and audio sources first. Check the chosen amplifier's inputs, microphone compatibility and whether paging can interrupt music; do not assume these features from the zone count.
This guide covers everyday paging. A standard PA package should not be assumed to provide a certified emergency voice alarm or fire-alarm integration.
For amplifier feature comparison, use the PA Amplifier Malaysia guide as the deeper reference.
When 70V/100V PA Makes Sense
70V/100V PA systems are commonly used when several speakers need to be installed across a building, warehouse or longer cable run. This direction can suit factories because speaker points may be spread across different work areas.
The final matching still depends on the amplifier output, speaker tap, total speaker quantity and cable route. Read the 70V/100V PA System guide before mixing equipment.
- Confirm line voltage. Match the selected amplifier output with the speaker transformer setting; a 70V/100V label does not mean every terminal can be used interchangeably.
- Add the selected tap loads. For example, four speakers set to 10W each make a 40W load. This is a calculation example, not a specification for the linked sets.
- Check output limits and headroom. Confirm the total and any per-zone limits in the model documentation, with allowance for the installation and future additions.
Matching Reminder
Do not mix ordinary home speakers with a factory PA amplifier without checking output type, impedance or 70V/100V speaker tap. Send equipment photos to CCF Audio if the factory is replacing an old system.
Choose Zones By Work Area
A zone groups speaker points for control; it does not describe how many speakers the amplifier can power. Depending on the model, zone controls may select areas or adjust levels. They do not automatically provide a different music source in every area.
Write the required behaviour first, such as paging the warehouse while the office stays quiet. Confirm that the amplifier and microphone support it. The options below are comparison references, not coverage recommendations.
| Factory Situation | Possible Direction | Check First |
|---|---|---|
| Two proposed groups, such as office and workshop | compare PA amplifiers and speaker systems as a starting reference | Speaker points, microphone need and total speaker load |
| Three proposed groups, such as workshop, warehouse and office | compare PA amplifiers and speaker systems as a comparison reference | Required zone controls, each speaker line load and the shared amplifier limit |
| Several buildings, high noise or exposed areas | Request a layout review before selecting equipment | Speaker suitability, cable distances, environment and source routing |
What To Send Before Ordering
- Factory, workshop or warehouse photos
- Simple floor plan or marked work area layout
- Speaker points needed for each area
- Proposed wall mounting points, heights and rack obstructions
- Approximate cable route and longest run
- Noise during normal operation; dust, moisture or outdoor exposure
- Paging microphone position
- Need for music, paging or other audio source
- Areas that need separate volume control
- Existing amplifier and speaker photos, if replacing old equipment
- Voltage and plug requirements
- Delivery location in Malaysia
Recommended CCF Starting Points
School & Factory PA Systems
Start with the School & Factory PA System collection for paging and broadcast planning.
PA Amplifier And Speaker Options
Use the PA amplifier and speaker collection when comparing amplifiers, zones and speaker sets.
Wall Speaker Sets
Compare the 4-inch set and 6.5-inch set after confirming the environment and speaker points. Check the selected variant's contents.
Related Planning Guides
For similar planning logic, read the School PA System Malaysia guide and the Sistem Siar Raya guide.
FAQ
Is higher wattage always better for a factory PA system?
No. Wattage is only one part of the decision. Noise level, speaker quantity, mounting position, cable route and zone control can affect whether announcements are clear in the real work area.
Can one speaker cover a warehouse?
Do not assume one speaker is enough for a warehouse. Long aisles, racks and loading areas may need several speaker points. Send photos or a simple layout to CCF Audio before ordering.
Should a factory use 70V/100V speakers?
70V/100V is often useful when several PA speakers are installed across a site. The amplifier output, speaker tap and total speaker load still need to be checked before matching.
Does a 3-zone amplifier play three different sources?
Not necessarily. Zone selection, volume control and independent source routing are different functions. Confirm the exact amplifier and paging microphone capabilities before ordering.
Can CCF Audio recommend a factory PA system from photos?
Photos and a layout help narrow down options. Include work-area noise, proposed speaker points, paging position, existing equipment labels and your Malaysia delivery location. Final coverage and mounting suitability still need site confirmation.
Send Your Factory Layout For Matching
Contact CCF Audio for a factory PA recommendation with your layout, work-area photos, proposed speaker quantity and paging position. Include your delivery postcode in Malaysia so the discussion can cover equipment and delivery needs.
Already have a speaker plan? Browse CCF PA systems and send the model or set you are considering for a matching check.
