A shop sound system and retail PA speaker set for background music and daily announcements. This page opens with the 14 speaker package using 4 inch wall speakers, with 2, 3 and 5 zone amplifier options available for different layouts.
CCF Public Address System

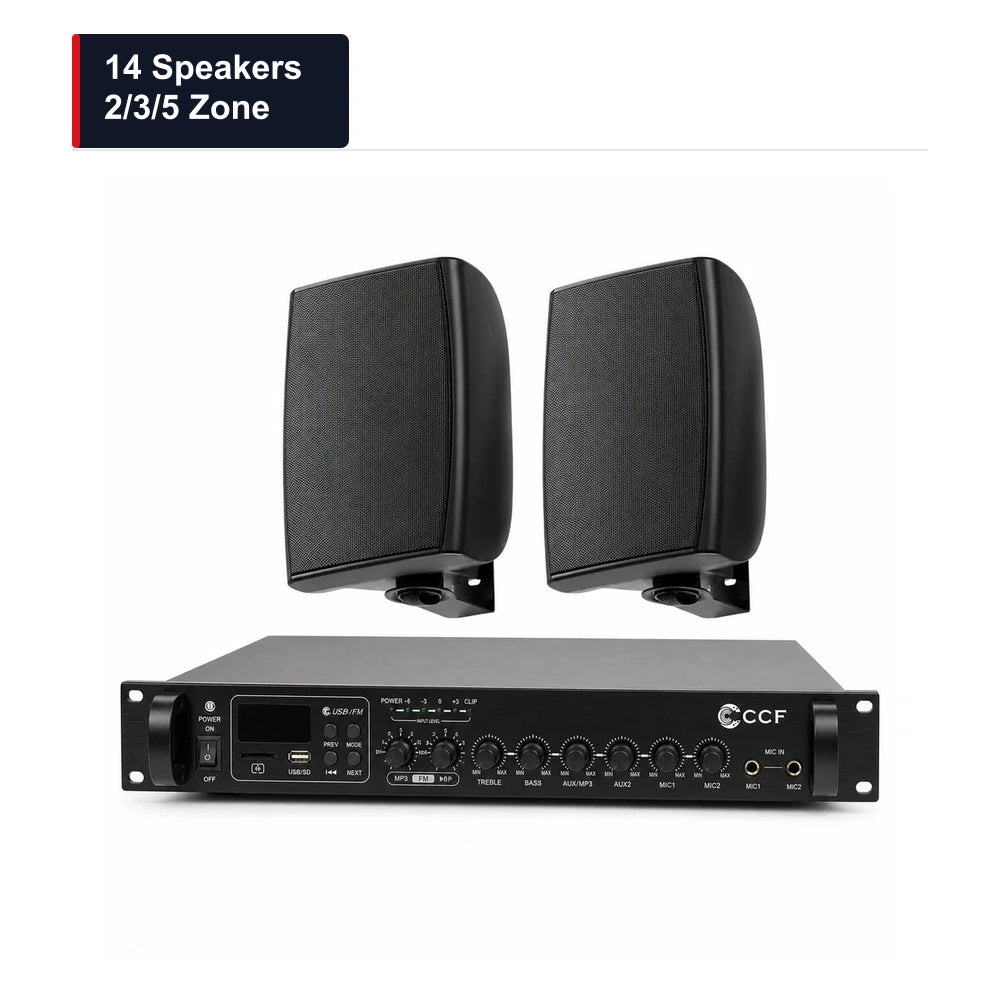

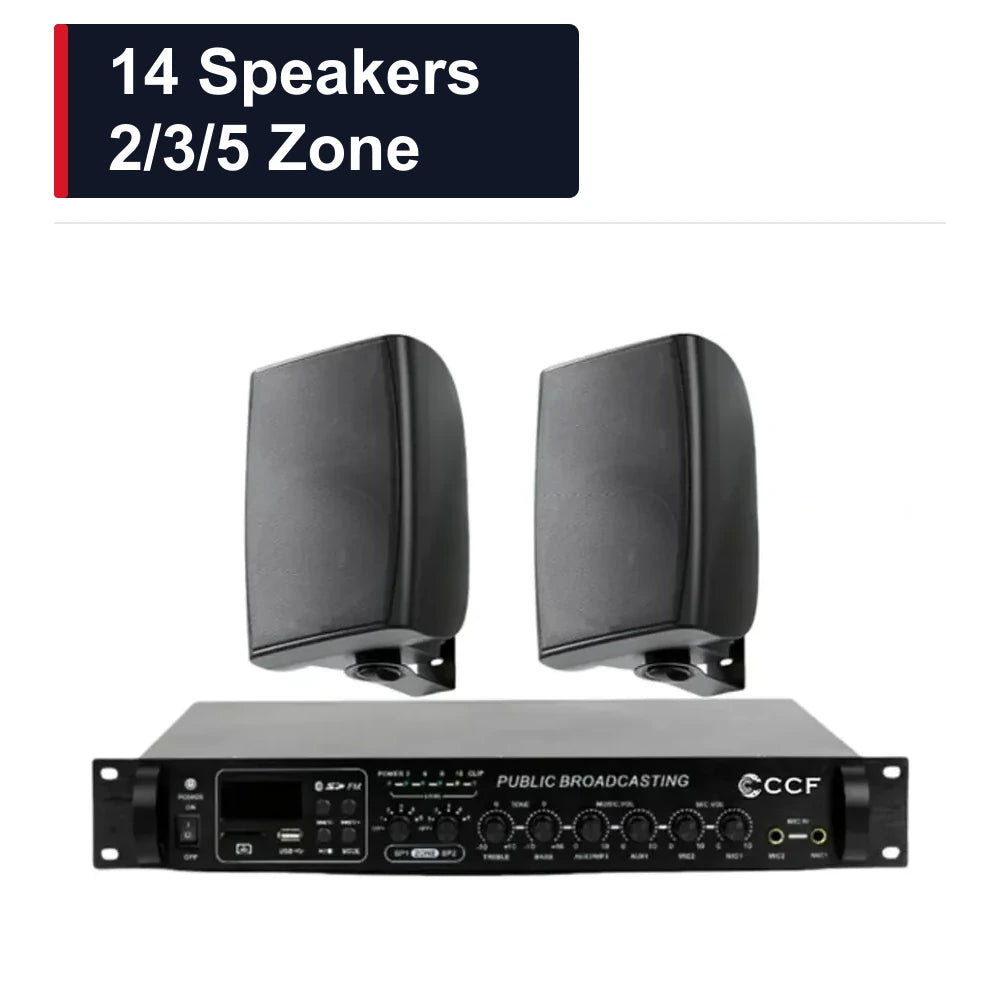

CCF 4 inch Wall Speaker PA System 14 Speakers 2/3/5 Zone
A PA amplifier and 4 inch wall speaker set for shop, cafe, school, factory, mall, and broadcast installations. The product images list the 4 inch wall speaker specifications and separate amplifier/speaker set combinations.
Important Note
4 inch wall speaker image shows tweeter + 4 inch woofer, 15-20W, 70-110V.
Package image shows 1.5m audio cable as a set accessory.
For long-distance speaker cable or installation matching, contact customer service before ordering.
4 Inch Wall SpeakerTweeter + 4 inch woofer shown in the product image.
Zone ControlSet images show 2, 3, and 5 zone amplifier options.
Clear Benefits
Matched set options: Each set image lists amplifier wattage, speaker quantity, zone type, and suggested area.
Multiple inputs: Images list Bluetooth, FM, RCA/AUX, USB, SD card, and microphone inputs.
PA use cases: Images show broadcast use in shops, school, factory, mall, and similar spaces.
4 Inch Wall Speaker Specifications
Item
Speaker
Driver
Tweeter + 4 inch woofer
Power
15-20 W
Voltage
70-110 V
Size
150 x 130 x 210 mm
Material / Adjustment
ABS flame-retardant material; rotating adjustment
Set Options Shown in Images
Item
Amplifier + Speakers
Zone / Function
Suggested Area
2 speakers set
60W amplifier x 1 + 20W 4 inch speaker x 2
2 zones volume
40-80 m2
3 speakers set
80W amplifier x 1 + 20W 4 inch speaker x 3
2 zones volume
60-120 m2
4 speakers set
100W amplifier x 1 + 20W 4 inch speaker x 4
3 zones volume with ECHO
80-160 m2
5 speakers set
120W amplifier x 1 + 20W 4 inch speaker x 5
2 zones volume
100-200 m2
6 speakers set
150W amplifier x 1 + 20W 4 inch speaker x 6
3 zones volume with ECHO
120-240 m2
8 speakers set
200W amplifier x 1 + 20W 4 inch speaker x 8
3 zones volume with ECHO
160-320 m2
10 speakers set
250W amplifier x 1 + 20W 4 inch speaker x 10
3 zones volume with ECHO
200-400 m2
12 speakers set
350W amplifier x 1 + 20W 4 inch speaker x 12
5 zones volume with ECHO & SIREN
240-480 m2
14 speakers set
420W amplifier x 1 + 20W 4 inch speaker x 14
5 zones volume with ECHO & SIREN
280-560 m2
16 speakers set
420W amplifier x 1 + 20W 4 inch speaker x 16
5 zones volume with ECHO & SIREN
320-640 m2
Recommended Use
Shop, cafe, school, factory, mall, office, and broadcast installation.
Connection Reminder
Confirm cable distance, speaker quantity, and amplifier power before installation.
